Upgrading a sliding patio door with a smart lock can modernize everyday access, enhance exterior security, and eliminate physical keys—all without replacing the entire door assembly. However, because sliding doors operate on tracks using lateral sliding mechanisms rather than swing hinges, choosing and installing a compatible smart lock requires specific structural considerations.

Below is a practical breakdown of how smart locks work on sliding patio doors, the main lock types available, critical sizing checks, and how to choose the right solution for your home or commercial project.

Can You Add a Smart Lock to an Existing Sliding Door?

Yes, you can. However, a standard deadbolt-style smart lock designed for hinged entry doors will not work on a sliding door.

Sliding patio doors require locks that physically clasp into the frame to prevent the door from being pried open horizontally or lifted off the bottom track. Depending on your door profile (aluminum, vinyl, UPVC, or wood) and frame clearance, you can choose between a complete narrow-stile mortise replacement or an auxiliary secondary smart lock.

The 3 Main Types of Smart Locks for Sliding Patio Doors

Lock Type	How It Works	Ideal Application	Access Methods
Narrow-Stile Smart Mortise Lock	Replaces the existing handle and interior mortise body directly inside the door stile.	Aluminum, UPVC, or framed glass patio doors; seamless architectural look.	Biometric fingerprint, touchscreen keypad, RFID IC card, mobile app (Tuya / TTLock), mechanical key.
Surface-Mounted Auxiliary Smart Lock	Installed onto the door stile and frame as an add-on latch without modifying the internal mortise.	Quick retrofits, rental units, or doors with non-standard internal cutouts.	Keypad, smartphone app, wireless remote.
Top/Bottom Electronic Bolt Lock	Motorized bolt mounted along the upper header or bottom floor track.	Secondary high-security deadlocking or doors with minimal frame width.	Remote control, keypad, or smart home hub.

Critical Compatibility Checklist: What to Measure Before Choosing

To ensure a smooth retrofit without interfering with the door’s operation or glass, verify these four essential hardware parameters:

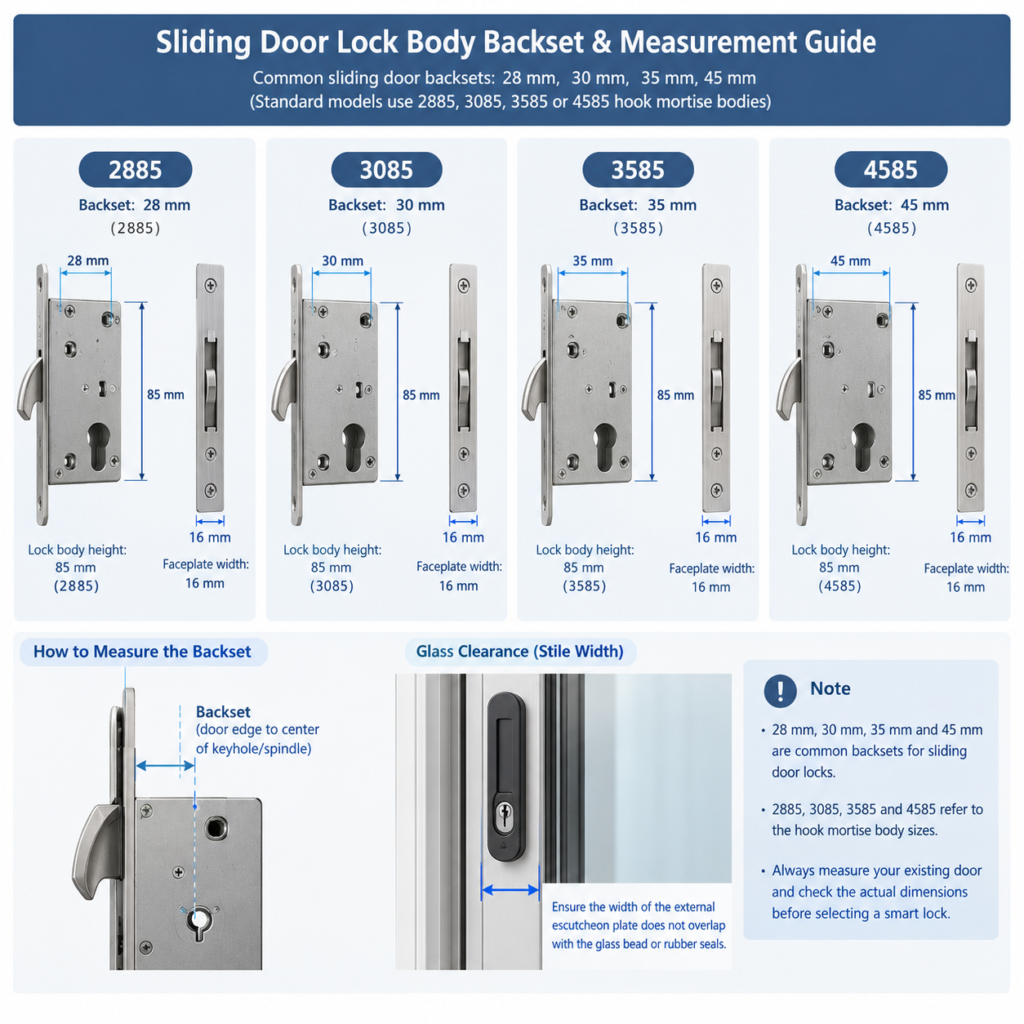

1. Stile Width & Backset (Narrow Frame Constraints)

Sliding glass doors often feature narrow aluminum or vinyl stiles (vertical frame sections).

• Backset Distance: Measure the distance from the door edge to the center of the keyhole/spindle. Common sliding door backsets are 28 mm, 30 mm, 35 mm, and 45 mm (standard models use 2885, 3085, 3585, or 4585 hook mortise bodies).
• Glass Clearance: Ensure the width of the external smart lock escutcheon plate does not overlap with the glass bead or rubber seals.

2. Hook Mortise Mechanism (Anti-Pry & Anti-Lift)

Sliding patio locks must use a single-hook or dual-opposing claw mortise bolt. Unlike straight latch bolts, hook bolts anchor firmly into the strike plate, preventing intruders from levering the door sideways or lifting the panel off the bottom rollers.

3. Handle Projection & Multi-Panel Clearance (Bypass Doors)

If your patio door features multi-slide or bypass panels where doors slide past one another:

• Check the projection thickness of the interior and exterior lock handles.
• Ensure the handle height does not obstruct the adjacent door panel when sliding fully open.

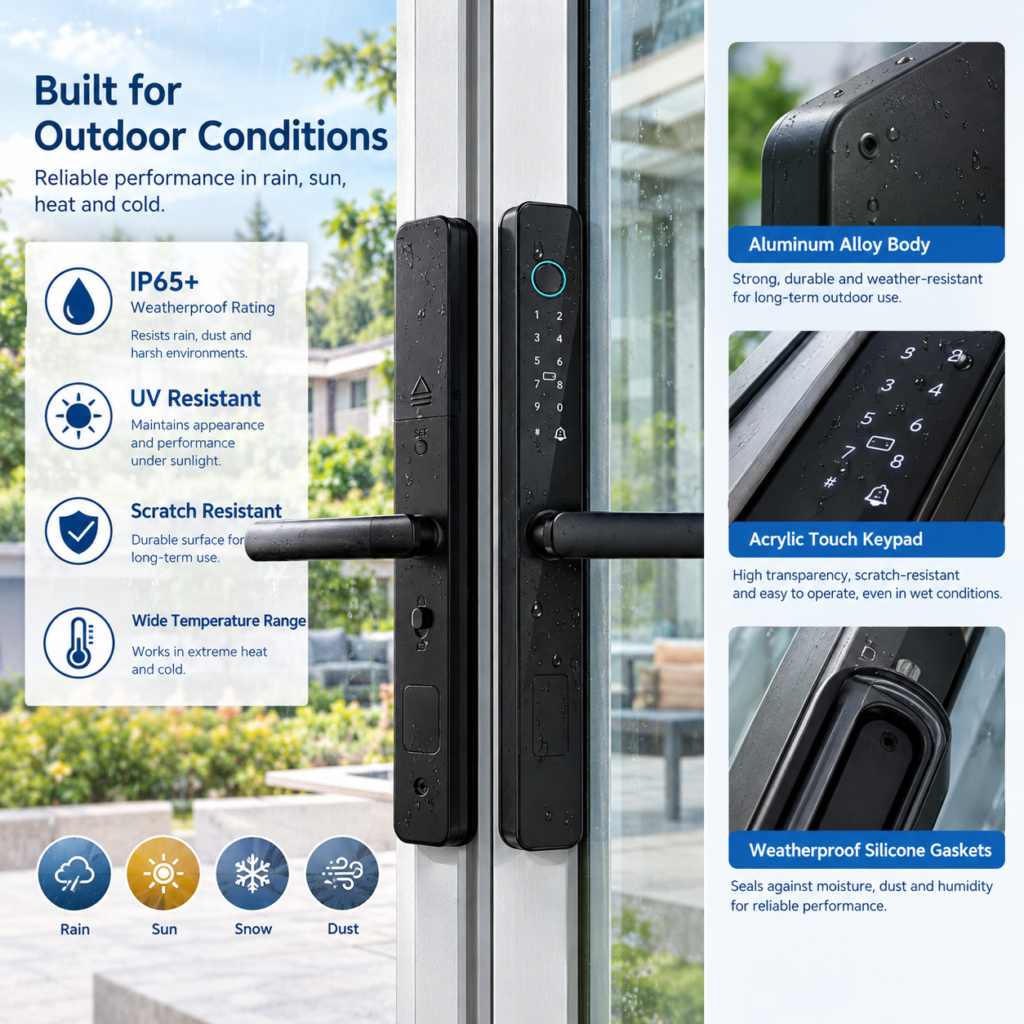

4. Outdoor Weather Resistance & Housing Materials

Patio doors directly face outdoor elements. For exterior handles:

• Choose a smart lock with an IP65 or higher ingress protection rating.
• Ensure the build features a rugged aluminum alloy structural body combined with a high-durability acrylic touch keypad, sealed with weatherproof silicone gaskets to resist UV exposure, scratching, and humidity.

Everyday Smart Access & Connectivity Features

A dedicated sliding door smart lock integrates modern access control into high-traffic outdoor living spaces:

• Multiple Keyless Entry Options: Unlock via semiconductor biometric fingerprint, anti-peep PIN code on the responsive acrylic keypad, RFID card, or physical backup key.
• Remote Management & Timed Access: Generate temporary or recurring passcodes for guests, pool maintenance crews, housekeepers, or tenants via smartphone apps (such as Tuya Smart or TTLock).
• Real-Time Security Alerts: Pair the lock with a wireless Wi-Fi gateway to receive instant door status alerts, unlock notifications, and tampering alarms from anywhere.
• One-Touch Auto-Locking: Configure automatic latching sensors to ensure the patio door never stays unlocked inadvertently.

Frequently Asked Questions (FAQ)

1. What happens if the smart lock battery dies while I am outside?

Quality sliding door smart locks feature multiple failsafes. They include an emergency mechanical key override concealed on the exterior panel, as well as an external emergency USB-C / micro-USB power port that allows you to jump-start the lock using a standard power bank.

2. Can I install a smart lock on double sliding (French sliding) patio doors?

Yes. For double sliding doors where two active panels meet in the middle, you will typically install the smart lock body on the primary operating panel and a matching flush dummy handle or passive strike plate on the opposing door panel. Ensure the claw/hook bolts align securely into the passive receiver.

3. Will rain or direct sunlight damage the patio door smart lock?

External patio lock panels require an IP65 or higher weatherproof rating. Models built with high-grade aluminum alloy and premium UV-resistant acrylic touch panels backed by internal waterproof silicone gaskets withstand direct rain, dust, and long-term sun exposure.

4. Can I use my existing door’s cutouts without drilling new holes?

It depends on your current lock preparation. If your sliding door already uses a standard European narrow-stile mortise (such as a 3585 or 2885 cutout), many smart models can retrofit directly with minimal or no additional drilling. However, if your door currently uses a surface clamp latch, minor hole drilling on the door profile may be required.

5. Do these locks support remote unlocking without being near the door?

Most sliding door smart locks connect locally via Bluetooth (e.g., TTLock or Tuya app) to conserve battery life. For remote unlocking, generating real-time passcodes remotely, or receiving instant entry alerts while away from home, you can simply pair the lock with an optional Wi-Fi gateway.

Sourcing & Project Guidance

Sliding patio door dimensions vary widely across regional markets, architectural styles, and profile extrusions. Before purchasing or placing project orders:

1. Take clear photos of the existing handle, side edge (showing the current latch/mortise), and strike plate.
2. Measure key dimensions: Stile width, door thickness, backset, and center-to-center distance (PZ / hole centers).
3. Specify access requirements: Bluetooth local management, cloud Wi-Fi integration, or commercial multi-unit master keying.

Whether you are upgrading a private residential patio or managing bulk procurement for apartments, villas, and hospitality projects, choosing an aluminum-alloy smart lock built specifically for narrow-stile sliding profiles ensures long-term security, weather endurance, and smooth operation.
